CID Heads BE 5.0 D3 4150 9.5" Deck Intake

The CID Heads BE 5.0 D3 intake manifold is designed for engine applications aiming to make 850+HP using D3 cylinder heads with a cast single plane intake. The CID Heads BE D3 intake manifold has an overall height of 9.75" and unmatched HP producing characteristics amongst all Ford cast single plane manifolds.

This version features the same 4500 square carb pad opening as the 4500 version, with 4150 Holley carburetor bolt spacing, and is designed for classes that must retain 4150 bolt spacing.

  • The BE 5.0 D3 4150 intake is designed for engines making 850+HP in street, race and marine applications.

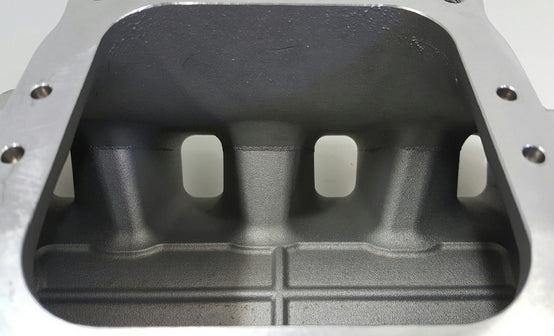

  • Near equal length runners that are 5" in area at the plenum opening with enough material to increase area to 6.0+" at plenum

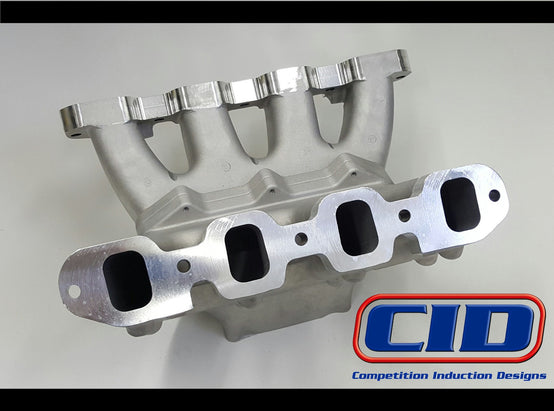

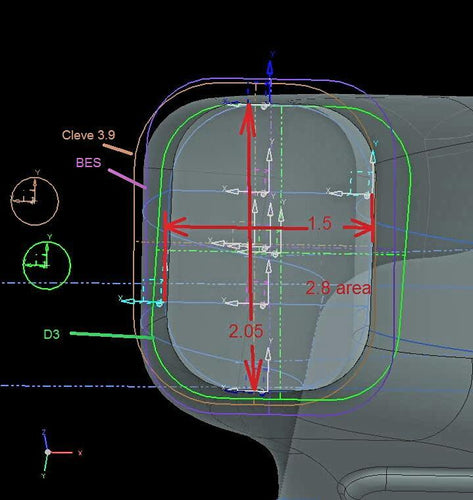

  • Designed to fit D3 port openings with port matching.
  • Intake manifold designed to fit 9.5" deck blocks
  • Designed and manufactured in the USA
  • 9.5" Deck Height
  • 4150 Carb bolt pattern
  • 5.0" of area at the plenum and of the runner
  • 9.75" tall. Can be milled down to 9.25"

What's In The Box:

One CID Heads BE 5.0 D3 4150 Intake Manifold to suit a 9.5" deck block.
