BE 5.0 LS7 Semi Finished Flange 2 Piece Intake Manifold. 9.75" deck

BE 5.0 LS7 Semi Finished Flange 2 Piece Intake Manifold. 9.75" deck

  • USD AUD
    $1,180.00 USD

    (Please note: For merchant purposes $AUD pricing will revert to $USD at checkout. Pricing includes freight from country of manufacture where applicable, but may not include local freight when shipped from our distributors)

CID Heads BE 5.0 Semi Finished Flange 2 Piece LS Intake Manifold.

The CID Heads BE 5.0 LS7 intake manifold is designed for engine applications aiming to make 800+HP using LS7 cylinder heads with a single plane intake. The BE LS7 intake manifold has an overall height of 9.5" and unmatched HP producing characteristics amongst all cast single plane manifolds. It features a square carb pad designed to suit a 4500 Dominator carburetor or throttle body.

This version comes with semi finished flanges so it can be adapted to LS heads that don't have factory intake flange bolt hole locations.

  • Semi finished without intake flange bolt holes
  • 2 Piece design makes access for porting easy.
  • The BE LS7 intake manifold is designed for 800+HP street, race and marine applications.
  • Near equal length runners that are 5" in area at the plenum opening with enough material to increase area to 5.5" at plenum
  • Designed to fit GM LS7 port openings
  • Intake Manifold flange at full thickness to suit a 9.75" deck block
  • 2 piece
  • Semi Finished Flange
  • 9.75" deck height
  • 5.0" MCSA at plenum end of runner
  • 4500 Carburetor pad
  • 9 1/2" tall. Can be milled down to 9"

WHAT'S IN THE BOX

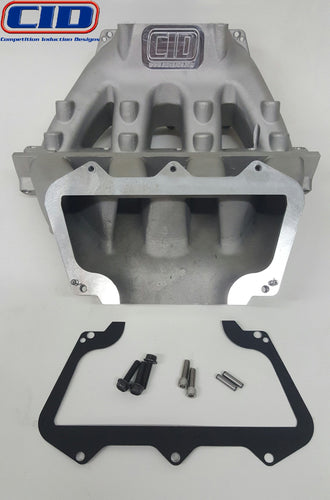

One CID Heads 2 piece Semi Finished Intake Flange 4500 BE 5.0 LS7 Intake Manifold..
