BE 4.0 LS7 Intake Manifold. 9.24" deck. 4500 Carburetor

BE 4.0 LS7 Intake Manifold. 9.24" deck. 4500 Carburetor


  • USD AUD
    $775.00 USD

    (Please note: For merchant purposes $AUD pricing will revert to $USD at checkout. Pricing includes freight from country of manufacture where applicable, but may not include local freight when shipped from our distributors)

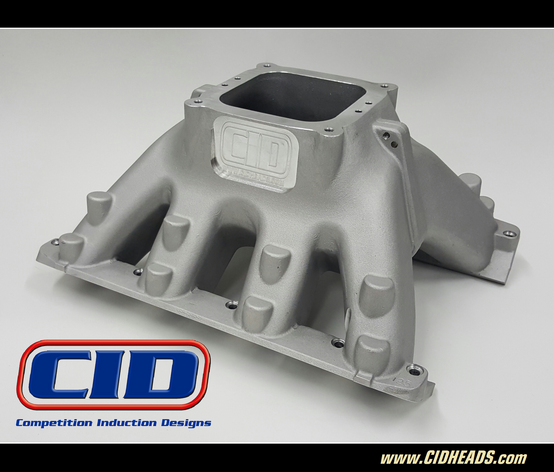

CID Heads BE 4.0 LS7 Intake Manifold.

The CID Heads BE 4.0 LS7 intake manifold is designed for engine applications aiming to make 600+HP using LS7 cylinder heads with a single plane intake. The CID Heads BE LS7 intake manifold has an overall height of 9.5" and unmatched HP producing characteristics amongst all cast single plane manifolds. It features a square carb pad designed to suit a 4500 Dominator carburetor or throttle body.

  • The BE LS7 intake manifold is designed for 600+HP street, race and marine applications.
  • Near equal length runners that are 4" in area at the plenum opening with enough material to increase area to 5.5" at plenum
  • Designed to fit GM LS7 port openings
  • Intake Manifold suits a 9.24" deck block
  • Made in the USA
  • 9.24"" deck height
  • 4500 Carburetor pad
  • 4.0" CSA at plenum end of runner
  • 9 1/2" tall. Can be milled down to 9"

WHAT'S IN THE BOX:

One CID Heads one piece 4500 BE 4.0 LS7 Intake Manifold.
