BE 5.0 D3 4500 Performance Intake Manifold suit 9.5" deck block.

BE 5.0 D3 4500 Performance Intake Manifold suit 9.5" deck block.

  • USD AUD
    $895.00 USD

    (Please note: For merchant purposes $AUD pricing will revert to $USD at checkout. Pricing includes freight from country of manufacture where applicable, but may not include local freight when shipped from our distributors)

CID Heads BE 5.0 D3 4500 9.5" Deck Intake

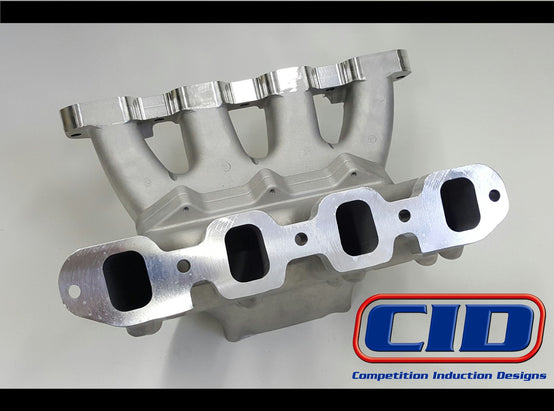

The CID Heads BE 5.0 D3 intake manifold is designed for engine applications aiming to make 850+HP using D3 cylinder heads with a cast single plane intake. The CID Heads BE D3 intake manifold has an overall height of 9.75" and unmatched HP producing characteristics amongst all Ford cast single plane manifolds. It features a square carb pad designed to suit a 4500 Dominator carburetor or throttle body.

  • The BE 5.0 D3 4500 intake is designed for engines making 850+HP in street, race and marine applications.

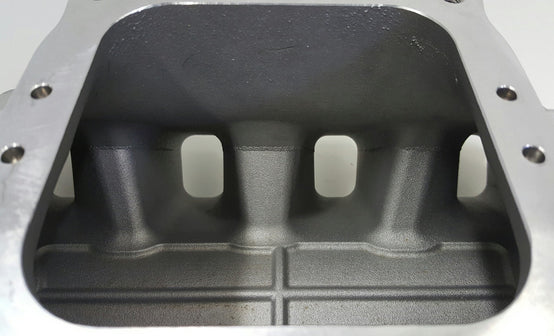

  • Near equal length runners that are 5" in area at the plenum opening with enough material to increase area to 6.0+" at plenum

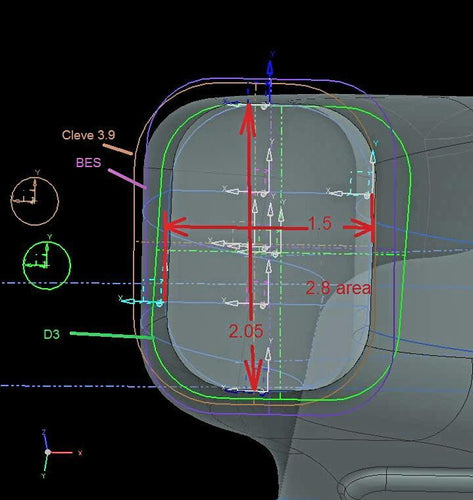

  • Designed to fit D3 port openings with port matching.
  • Intake manifold designed to fit 9.5" deck blocks
  • Designed and manufactured in the USA
  • 9.5" Deck Height
  • 4500 Carb bolt pattern
  • 5.0" of area at the plenum and of the runner
  • 9.75" tall. Can be milled down to 9.25"

What's In The Box:

One CID Heads BE 5.0 D3 4500 Intake Manifold to suit a 9.5" deck block.
